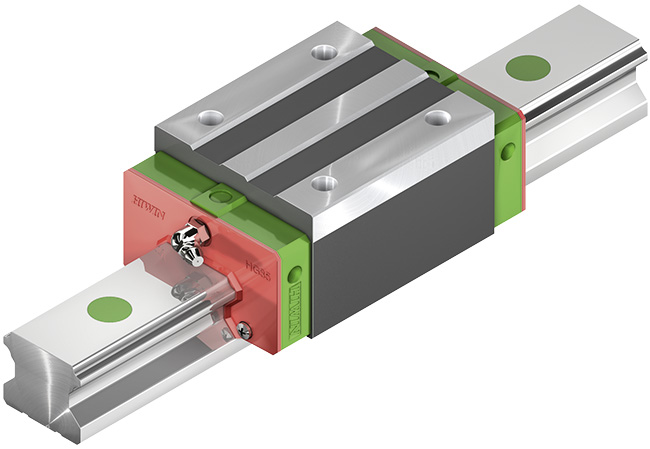

HG Series (Regular Width) -HG series linear guideway is heavy load linear guideway. It is designed by circular-arc groove and structure optimization are higher over 30% load capacity and rigidity than other similar ball type linear guideway.
It features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.
Details

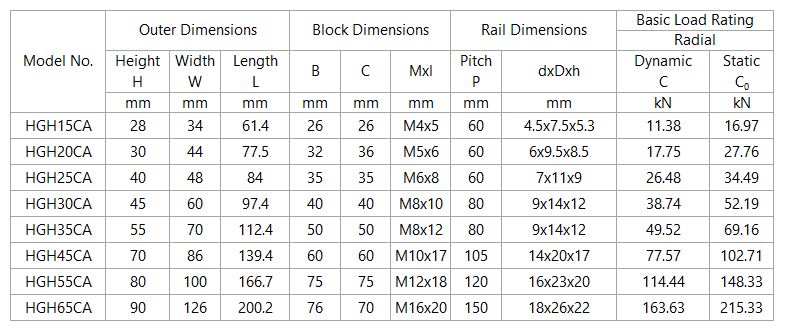

| Block Dimensions | 26mm X 26mm |
|---|---|
| Outer Dimensions | 28 X 34 X 61.4 |
